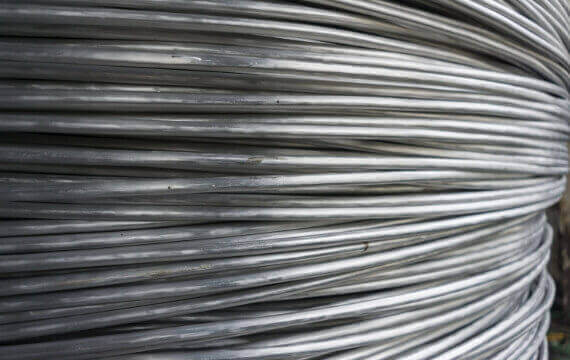

Aluminum Alloy Wire Rod

Aluminum Alloy Wire Rod

The advantage properties of aluminum alloy are light weight, excellent electrical and thermal conductivity, high corrosion resistance and ductility.

Aluminum alloy is soft and usually alloyed with copper, zinc, magnesium, silicon, manganese and lithium to increase strength. When aluminum alloy is exposed to air, an anti-oxidant coating will be formed instantly to protect products. Aluminum alloy is one of the lightest metals. The application of products ranges from precision technology to daily commodities.

Mechanical Properties

6xxx Series Aluminum Alloy
  • Tensile Strength, Ultimate
  • 89.6 ~ 565 MPa
  • Tensile Strength, Yield
  • 40.0 ~ 517 MPa
  • Hardness, Vickers
  • 35.0 ~ 149

Product Specification and Size :

Standard Specification: GB/T6892, ASTM B221, EN 755

Alloy and Temper
Alloy Temper
1xxx, 2xxx, 3xxx, 4xxx, 5xxx, 6xxx, 7xxx O, T1, T4, T5, T6, H112

Alloy Designation (For Reference)

Comparison of Alloy Designations for Aluminum Products

Alloy Series Chinese Standard American Standard European Standard
1xxx Series 1050 - -
1050A - EN AW-1050A
1060 1060 -
1100 1100 -
1200 - EN AW-1200
1145 1145 -
1235 1235 EN AW-1235
2xxx Series 2014 2014 EN AW-2014
2017 - -
- - EN AW-2017A
2024 2024 EN AW-2024
3xxx Series 3003 3003 EN AW-3003
3004 3004 EN AW-3004
3005 3005 EN AW-3005
3105 3105 EN AW-3105
5xxx Series 5005 5005 EN AW-5005
5052 5052 EN AW-5052
- 5754 EN AW-5754
5083 5083 EN AW-5083
6xxx Series 6005 6005 -
6060 6060 EN AW-6060
6061 6061 EN AW-6061
6063 6063 EN AW-6063
6082 6082 EN AW-6082
6463 6463 -
7xxx Series 7075 7075 EN AW-7075

Temper Designation (For Reference)

Temper Definition
O Annealed
T4 Solution heat-treated and naturally aged
T5 Cooled from an elevated temperature shaping process and then artificially aged
T6 Solution heat-treated and then artificially aged
H112 Slightly strain harden from working at an elevated temperature or from limited amount of cold work

Available Size Range

Dimension Range
Outside Diameter 2~29mm

Application

Aluminum alloy wire rods can be applied in mechanical industries, such as bolts, nuts, nails, needles, rivets, clips and staples. Aluminum alloy wire rod is also the most widely available bike components and affordable choice for racing and mountain bike frames.

Chemical Composition (For Reference)

Chemical Composition conforms to Chinese, American and European standard specification

Alloy Si Fe Cu Mn Mg Cr Zn Ti Others:
Each		 Others:
Total		 Al: Min.
1050 0.25 0.40 0.05 0.05 0.05 - 0.05 0.03 0.03 - 99.50
1050A 0.25 0.40 0.05 0.05 0.05 - 0.07 0.05 0.03 - 99.50
1060 0.25 0.35 0.05 0.03 0.03 - 0.05 0.03 0.03 - 99.60
1100 0.95 Si + Fe 0.05~0.20 0.05 - - 0.10 - 0.05 0.15 99.0
1200 1.00 Si + Fe 0.05 0.05 - - 0.10 0.05 0.05 0.15 99.0
1145 0.55 Si + Fe 0.05 0.05 0.05 - 0.05 0.03 0.03 - 99.45
1235 0.65 Si + Fe 0.05 0.05 0.05 - 0.10 0.06 0.03 - 99.35
2007 0.80 0.80 3.30~4.60 0.50~1.0 0.40~1.80 0.1 0.80 0.20 0.10 0.30 remainder
2011 0.40 0.70 5.0~6.0 - - - 0.30 - 0.05 0.15 remainder
2014 0.50~1.20 0.70 3.90~5.0 0.40~1.20 0.20~0.80 0.10 0.25 0.15 0.05 0.15 remainder
2017 0.20~0.80 0.70 3.50~4.50 0.40~1.0 0.40~0.80 0.10 0.25 0.15 0.05 0.15 remainder
2024 0.50 0.50 3.80~4.90 0.30~0.90 1.20~1.80 0.10 0.25 0.15 0.05 0.15 remainder
3003 0.60 0.70 0.05~0.20 1.0~1.50 - - 0.10 - 0.05 0.15 remainder
3004 0.30 0.70 0.25 1.0~1.50 0.80~1.30 - 0.25 - 0.05 0.15 remainder
3005 0.60 0.70 0.30 1.0~1.50 0.20~0.60 0.10 0.25 0.10 0.05 0.15 remainder
3105 0.60 0.70 0.30 0.30~0.80 0.20~0.80 0.20 0.40 0.10 0.05 0.15 remainder
5005 0.30 0.70 0.20 0.20 0.50~1.10 0.1 0.25 - 0.05 0.15 remainder
5052 0.25 0.40 0.10 0.10 2.20~2.80 0.15~0.35 0.10 - 0.05 0.15 remainder
5754 0.40 0.40 0.10 0.50 2.60~3.60 0.30 0.20 0.15 0.05 0.15 remainder
5083 0.40 0.40 0.10 0.40~1.0 4.00~4.90 0.05~0.25 0.25 0.15 0.05 0.15 remainder
6060 0.30~0.60 0.10~0.30 0.10 0.10 0.35~0.60 0.05 0.15 0.10 0.05 0.15 remainder
6061 0.40~0.80 0.70 0.15~0.40 0.15 0.80~1.20 0.04~0.35 0.25 0.15 0.05 0.15 remainder
6063 0.20~0.60 0.35 0.10 0.10 0.45~0.9 0.10 0.10 0.10 0.05 0.15 remainder
6082 0.70~1.30 0.50 0.10 0.40~1.0 0.60~1.20 0.25 0.20 0.10 0.05 0.15 remainder
6463 0.20~0.60 0.15 0.20 0.05 0.45~0.90 - 0.05 - 0.05 0.15 remainder
7075 0.40 0.50 1.20~2.0 0.30 2.10~2.90 0.18~0.28 5.1~6.1 0.20 0.05 0.15 remainder
